Vollautomatische Blockformmaschine für Hohl- und Pflastersteine
- NO.：ZN1000C
- China
- 45-90 Tage

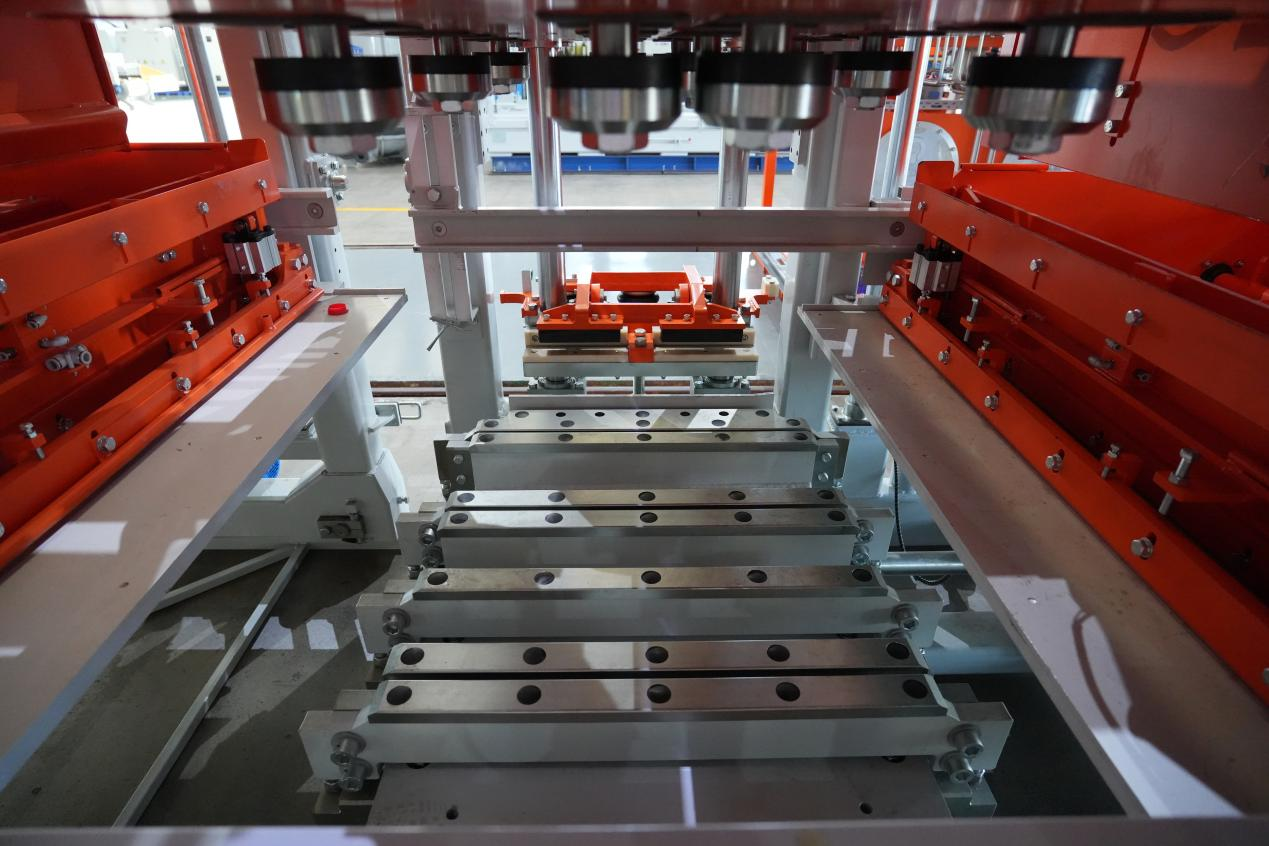

Block Machine Overview
The T9 Concrete Block Molding Machine leverages QGM’s proven brick-making equipment manufacturing technology and seamlessly integrates advanced German processes with intelligent control systems. Combining a compact design, reliable operation, user-friendly controls, and a rapid return on investment, this machine perfectly balances high performance with cost-effectiveness, making it an ideal choice for medium- to large-scale concrete product manufacturers and startup investment projects.
The T9 block molding machine offers exceptional capabilities for the comprehensive utilization of solid waste resources and can effectively process industrial waste materials such as fly ash, coal gangue, steel slag, tailings, and construction waste. The equipment efficiently produces a range of products, including concrete blocks, paving bricks, slope protection bricks, and grass-paving bricks. These products are widely used in sponge city construction, parks and plazas, community facilities, and small- to medium-sized municipal engineering projects, providing customers with high-quality solutions for comprehensive resource utilization and the production of green building materials.
Block Machine Specifications
Products | External Dimensions | Number of Molds (molds/die) | 8-hour Production Capacity |
Hollow Bricks | 390*190*190mm | 9 | 10,368-12,960 |
Standard Bricks | 240*115*53mm | 50 | 72,000-96,000 |
Dutch Bricks | 200*100*60mm | 36 | 41,472-51,840 |
Model | T9 |
Pallet Size | 1350 × 700 mm |
Max Molding Area | 1300 × 650 mm |
Product Height | 50 - 500 mm |
Cycle Time | 15 - 25 s |
Vibration Type | Table Vibration |
Control System | SIEMENS |
Technical Advantages
Four-Axis Servo Vibration System: Precise Excitation, High-Efficiency Compacti
Servo Drive and Mechanical Balance: Four servo motors synchronously drive four sets of eccentric shafts. The centrally symmetrical layout effectively cancels out horizontal vibrational forces, outputting only stable and efficient vertical excitation forces, thereby significantly reducing resonance losses in the equipment.
Stepless Adjustment and Recipe Adaptation: The servo system supports stepless adjustment of excitation force, allowing vibration parameters to be precisely set according to the requirements of different products, effectively improving product compaction, dimensional accuracy, and overall production stability.
